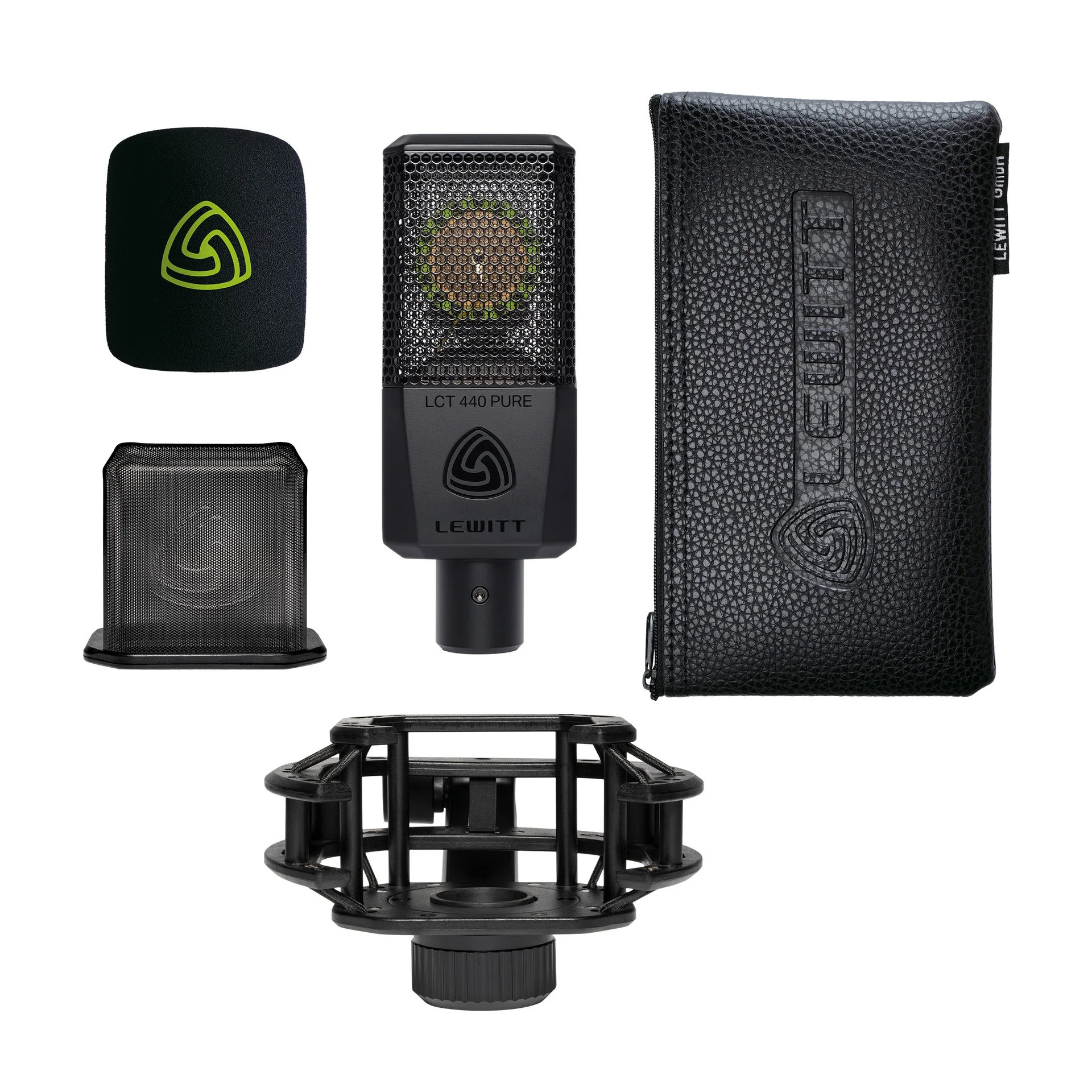

The LCT 440 Pure pushes the limits of today's technology is the credo of our company since day one. Representing the distilled essence of our top-of-the-line microphonesﾒ technology packed into a sturdy, stylish and compact housing. The capsule delivers an impressive level of detail and very low self-noise. Pure detail. Pure sound. For all applications.
SPECIFICATIONS:
Acoustical operating principle - Pressure gradient transducer, externally polarized
Diaphragm - 3 micron gold sputtered Mylar
Transducer � - 25.4 mm, 1 in
Polar pattern - Cardioid
Sensitivity - 23.1 mV / Pa (-32.7 dBV), cardioid
Signal / noise ratio - 87 dB (A)
Dynamic range - 134 dB (A)
Equivalent noise level - 7 dB (A), cardioid
Supply voltage - 48 V +/- 4 V
Max. SPL for 0.5 % THD - 140 dBSPL
Current consumption - 2.63 mA
Rated impedance - < 110 O
Rated load impedance - > 1000 O
Connector - Gold plated 3-pin XLR
Mic enclosure - Zinc die cast
Microphone dimensions - 138 x 52 x 36 mm, 5.43 x 2.04 x 1.42 inch
Microphone net weight - 310 g / 10.9 oz
