Lauten Audio Synergy LS-308 Side-Address Condenser Microphone
The LS-308 is a problem solver – a microphone designed specifically for when isolation is needed, but difficult to achieve. This one-of-a-kind, side address condenser microphone hears like a laser, sounds like a ribbon, and is able to withstand a staggering 135dB of SPL without internal padding. Track electric guitars in front of a live drum kit, or the bottom of a snare drum with astonishing dynamics and isolation.
UNMATCHED ISOLATION
270 degrees of off-axis rejection allows you to confidently capture loud, impactful sounds live without the need to replace toms or retrack guitars due to bleed.
ULTRA-HIGH SPL AND DYNAMIC RANGE
Capable of withstanding a staggering 135dB of SPL without internal padding, the LS-308 is nearly impossible to overload. Capture the loudest sound sources reserved for dynamic microphones with ease.
DARK BY DESIGN
Creating a microphone with such strong off-axis rejection had a unique timbral side-effect -- a sound similar to a ribbon microphone, but without the fragility. This classic timbre can be further shaped with two analog filters that allow for immediate sound-shaping right at the source.
PREMIUM COMPONENTS
The LS-308 signal path is hand-populated with high resolution, low distortion polypropylene capacitors and resistors, a US made low-noise FET, and a custom wound output transformer. The result is a massively impactful sound with unmatched isolation and SPL handing.
DESIGNED & TESTED IN SILICON VALLEY, CA
Each LS-208 is lovingly designed and crafted to last a lifetime by the Lauten Audio family

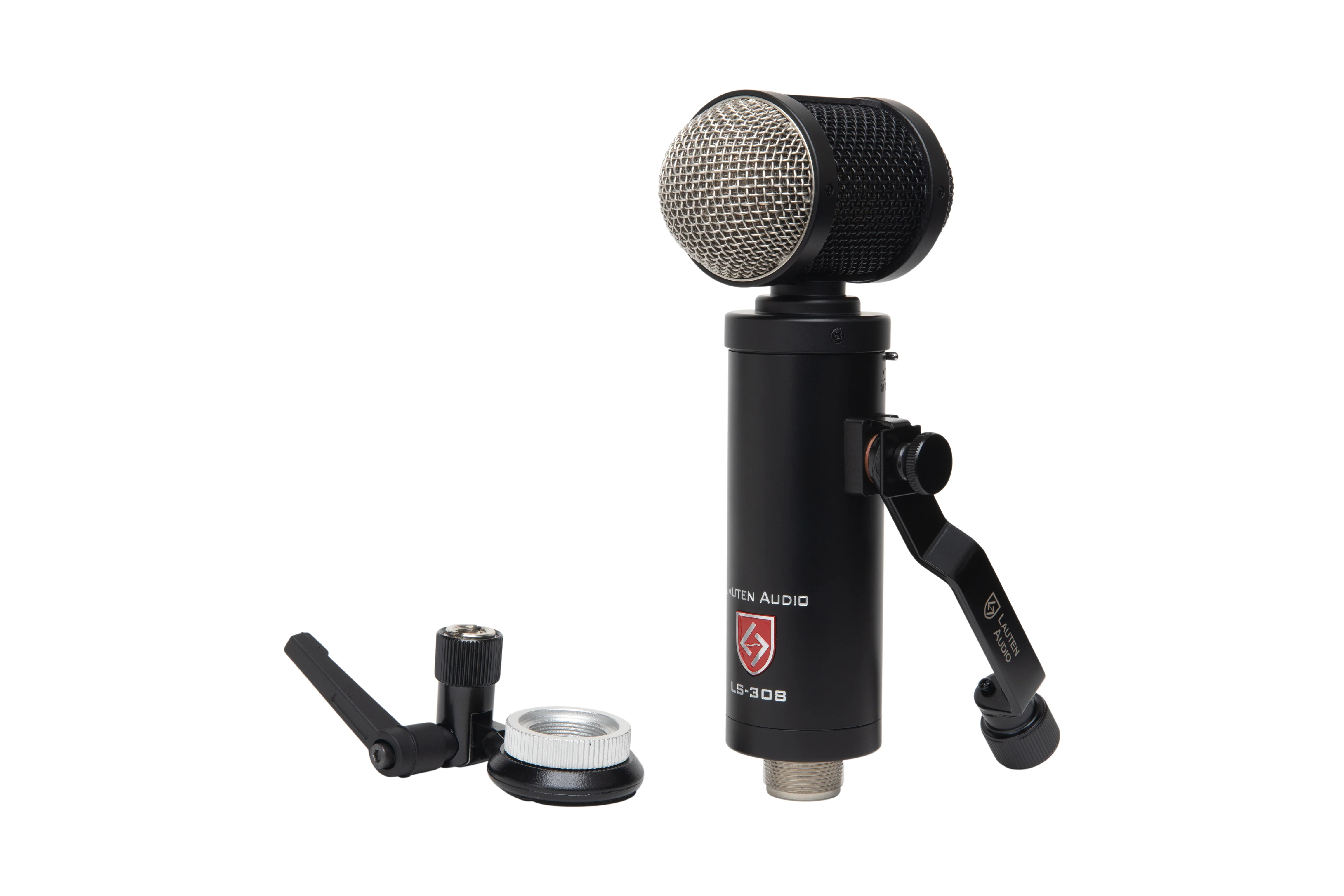

IN THE BOX
• LS-308
• Flight Case
• Adjustable Hard Mount
• Foam Windscreen
IDEAL FOR USE ON
• Electric guitar
• Toms
• Bottom Snare
• Any source where isolation is needed
• Loud sounds that would destroy a ribbon or classic condenser element
NOTE: The LS-308 is not recommended for use on vocals
SPECIFICATIONS
• Type: Side-address pressure gradient FET condenser
• Capsule: 35mm
• Polar Patterns: Second-order Cardioid
• Freq. Response: 20Hz-20KHz (Roll off begins at 7kHz due to rejection)
• Dynamic Range: 135dB
• SPL handling: >135dB (0.5%THD@1000Hz)
• Impedance: >150 ohms
• Self-noise level: <15dB-A
• Sensitivity: 10.5mV/Pa -46dBV (0dB=1V/Pa 1KHz)
• Connector: 3-pin XLR
• Power: Requires 48v Phantom Power
