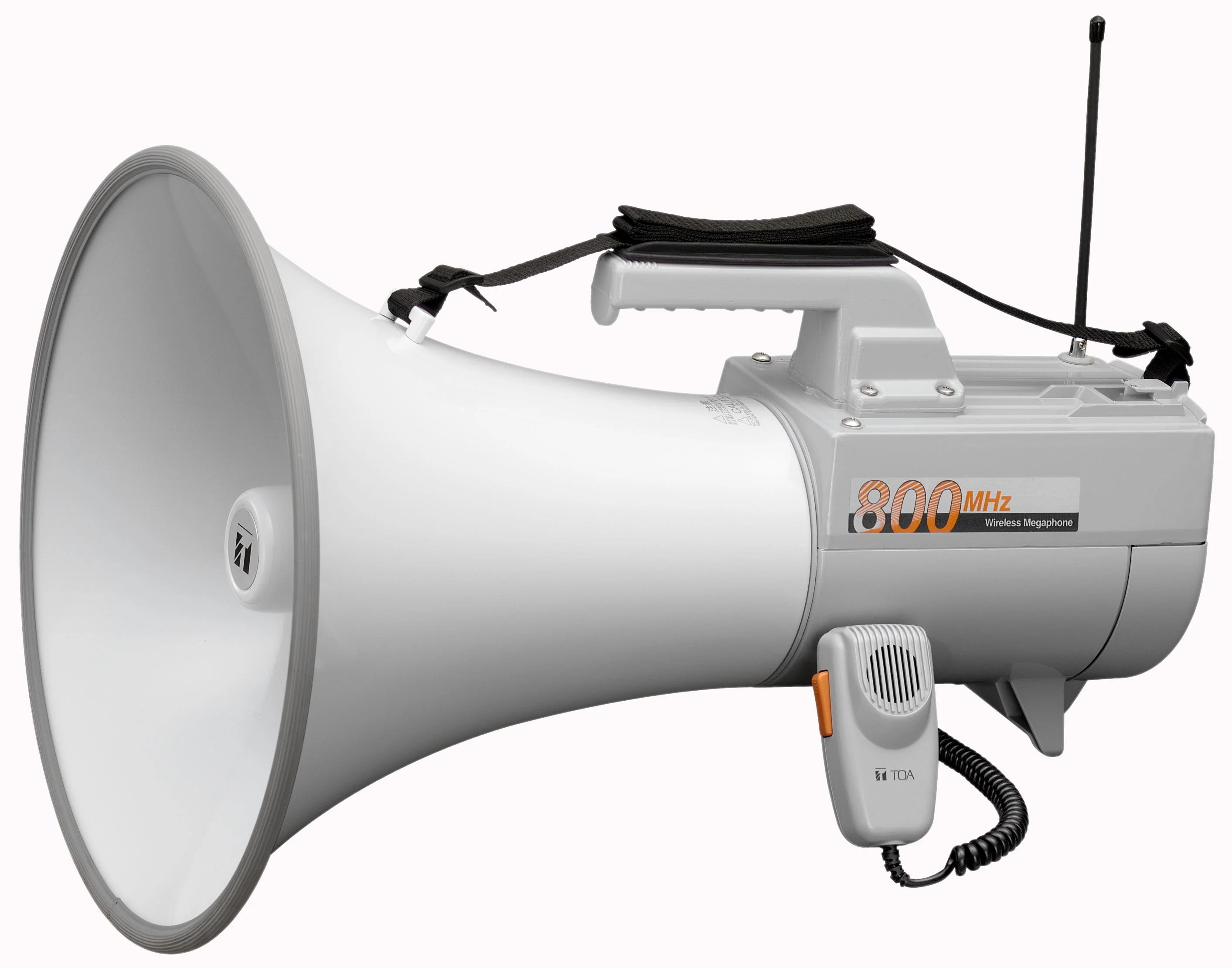

ER-2930W Shoulder Type Megaphone with Whistle

The ER-2930W is a shoulder megaphone having facilities of EXT. mic input, an AUX input, a DC power input, a battery meter whistle sound. It can be mounted to the optional ST-16A speaker stand. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.

• (*1) 0 dB = 1 V
• Power Source Battery: R20P (D) × 10 (15 V DC)
• External Power: 12 V DC Battery
• Rated Output 30 W
• Maximum Output 45 W
• Signal Sound Whistle (1.6 to 2.4 kHz)
• Battery Life Voice: Approx. 17 hours (JEITA (*2)), Whistle: Approx. 90 min. (JEITA (*2))
• Audible Range Voice: Approx. 800 m (JEITA (*2)), Whistle: Approx. 1000 m (JEITA (*2))
• AUX Input Sensitivity -10 dB (*1) (300 mV), 10 kΩ (φ3.5 mini jack, stereo plug acceptable) ,
• volume control
• EXT. Mic Input 600 Ω, unbalanced, %%c6.3 phone jack, volume control
• Receiving Frequency UHF (800 MHz Band), VHF (200 MHz Band)
• Antenna Fold-down flexible antenna
• Diaphragm Polyimide film (voice coil, bobbin)
• Remaining Battery Indication LED (also serves as a power indicator)
• Steady ON: Normal use, Flashing: Batteries need replacement
• Operating Temperature -10 ℃ to +40 ℃
• Finish Horn ring: Vinyl chloride, gray
• Horn: Aluminum, light gray, paint
• Case top: Die-cast aluminum, gray, paint
• Strap: Nylon, black, Others: ABS resin, gray
• Dimensions φ351 × 512 mm
• Weight 3.8 kg (without batteries) , Microphone: 150 g
• Accessory φ3.5 mini plug (AUX input)…1, External power supply cord (1 m)…1,
• Splash-proof cover…1 (*3)
• Option Speaker stand: ST-16A, Microphone: DM series
• Wireless microphone: WM-3220 series, WM-3310 series, WM-4200 series, WM-4300 series
• Wireless tuner: WTU-3800 series, WTU-4800 series
