Shure SVX DUAL PG185 LAPEL UHF Wireless System

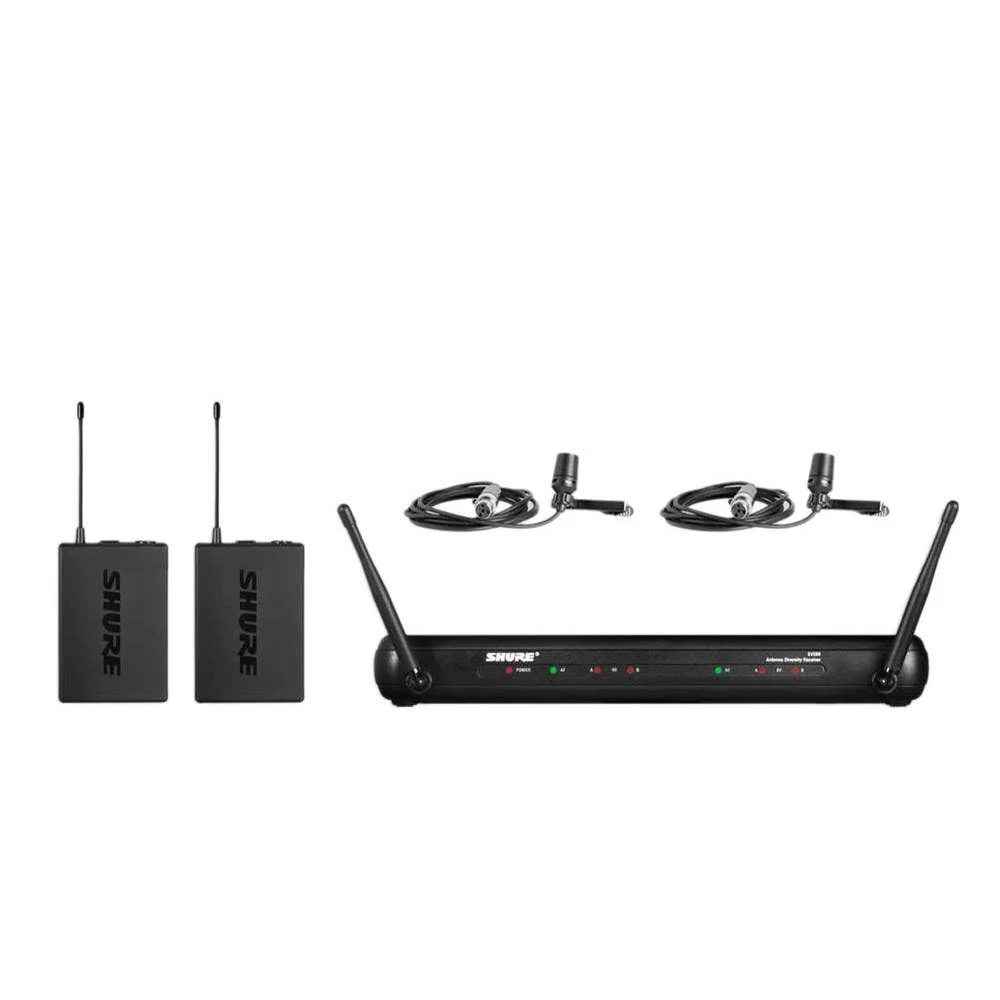

Includes SVX88 Dual Diversity Receiver, and SVX1 Bodypack Transmitter with PG185 Lavalier Microphone.

SVX Wireless Systems deliver the quality of Shure wireless performance for virtually any application. From vocal performance to fitness instruction, presentations to karaoke, SVX Wireless will provide years of reliable use. No other wireless system combines the same level of quality and ease of setup in a single package.

Sound Quality

• PG185 Lapel mic

Set-Up features

• Antenna diversity
• 8 selectable channels
• Adjustable Squelch
• 1/4” output & XLR output
• AA battery & PS 21 power supply
• 2-position HI/LO Output Power Switch (Handheld)

Performance

• Up to 16MHz Bandwidth (UHF)
• Up to 4 compatible channels (country dependent)

System technical specifications

• Compatible systems per frequency band: 4
• Selectable frequencies: 8
• Auto Setup Features: No
• Audio Reference Companding: No
• Included Antennas: Internal 1/4-wave
• Antenna Options: No
• Receiver Network Ability: No
• PC Control: No
• Rack Hardware: Optional (WASRM for 2 single channel receivers, WADRM for dual channel receiver)
• Case: No
• Transmitter Display: LED
• Battery, Endurance: 2AA, >10h
• Environment: Small stage, karaoke, hotels, schools, restaurants

Further Technical Specs

Working Range (Line of Sight)

• HI power mode: 75 m (250 ft)
• LO power mode: 18 m (60 ft)

Note: Actual range depends on RF signal absorption, reflection and interference. Audio Frequency Response

• 50 Hz to 15 kHz

Note: Dependent on microphone type Total Harmonic Distortion (Ref. ±48 kHz deviation, 1 kHz tone)

• <1%

For J9 (New Zealand): Total Harmonic Distortion (Ref. ±26 kHz deviation, 1 kHz tone)

• <1%

Dynamic Range

• 90 dB A-weighted, typical

Operating Temperature Range

• –10°C (14°F) to 50°C (122°F)

Note: Battery characteristics may limit this range. Transmitter Audio Polarity
