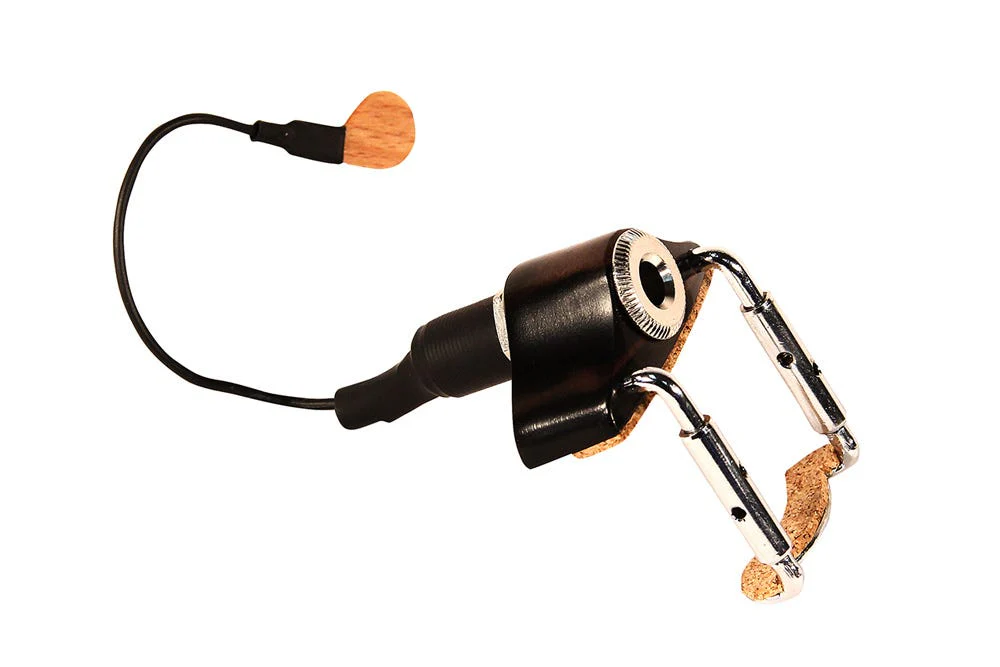

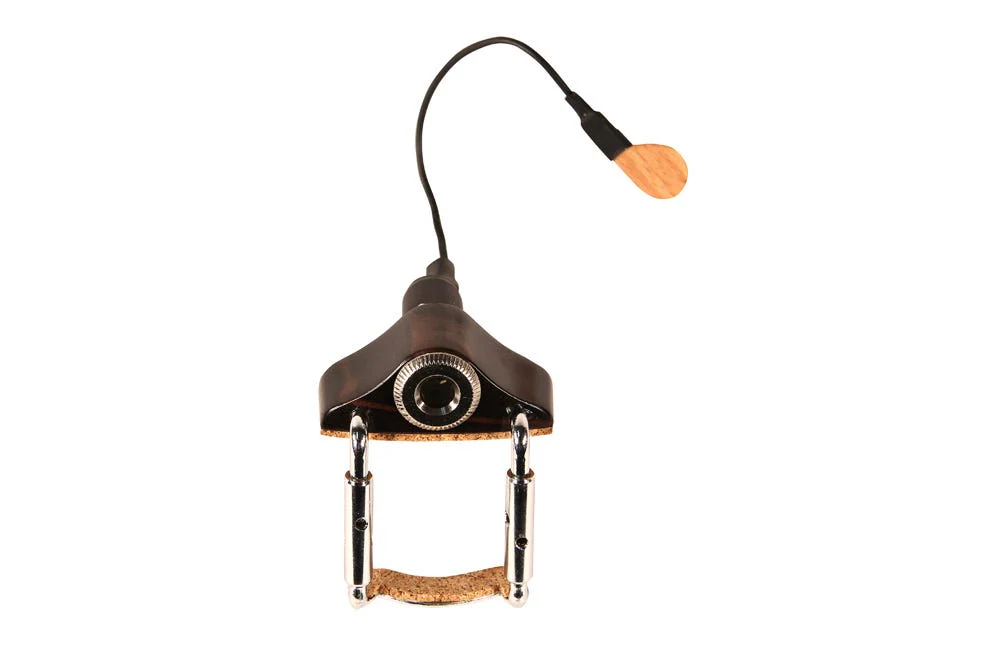

KNA VV-3 Piezo Pickup for Violin and Viola

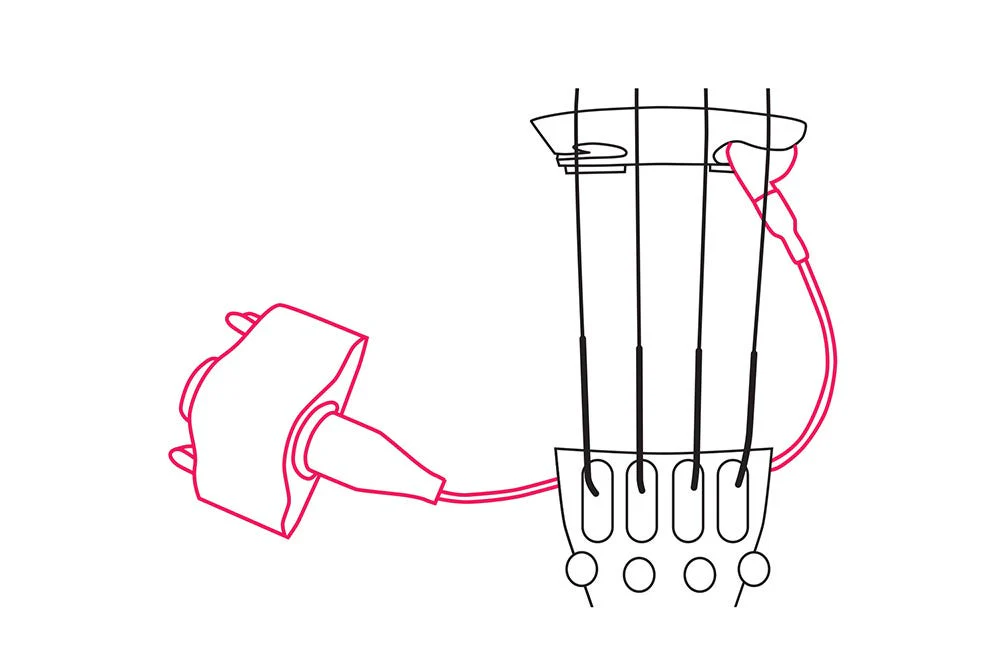

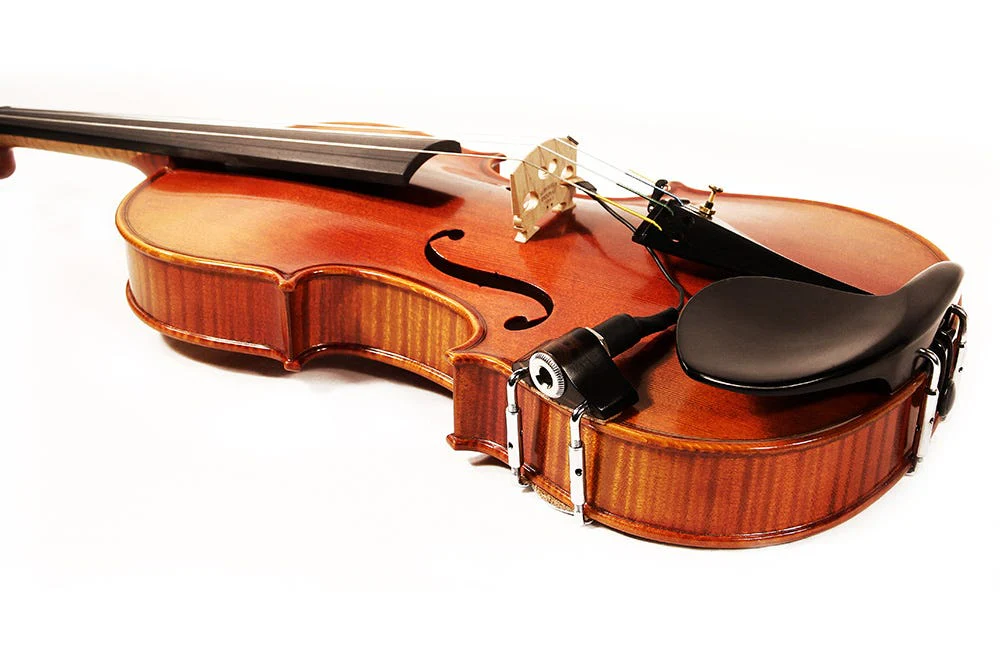

The VV-3 offers clean and clear acoustic sound, easy installation without instrument modification, and a lightweight low-profile ebony jack housing ideal for the performing musician. Secure the output jack to the lower bout of the instrument, slip the VV-3 sensor into the eye of the bridge and you’re ready for any live or studio performance. Passive.

SPECIFICATIONS

• Jack housing material
• Solid Ebony
• Overall weight
• 36gr / 1.27
• Lead cable from jack housing to element
• 15cm / 5.9"
• Diameter of piezo element 11.8mm / 0.46"
• Thickness of the piezo element
• 1.8mm +/- 0.10mm
• Maximum Impedance
• 1500 Ω
• Clamps adjustability (min & max)
• 33mm to 43mm
• 1.16" to 1.51"
• Clamps adjustability (min & max)
• 40mm to 49mm
• 1.41" to 1.73"
