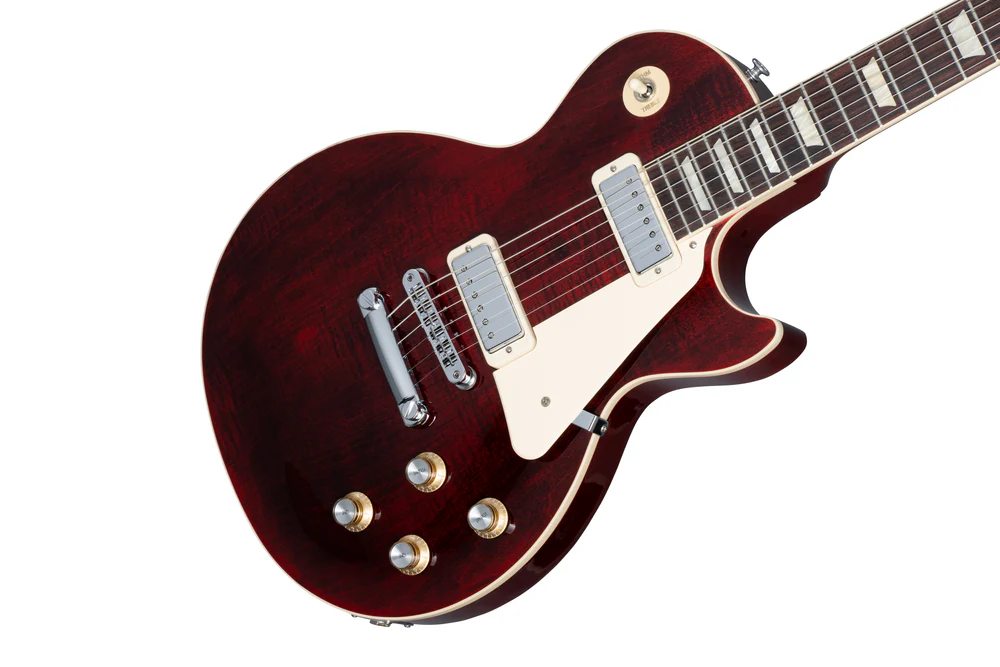

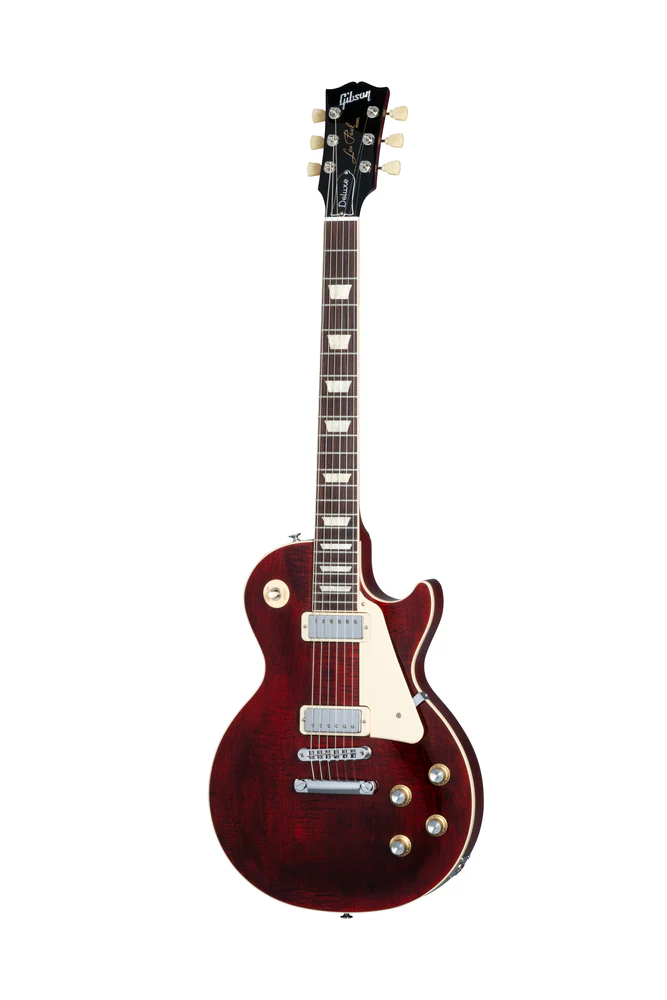

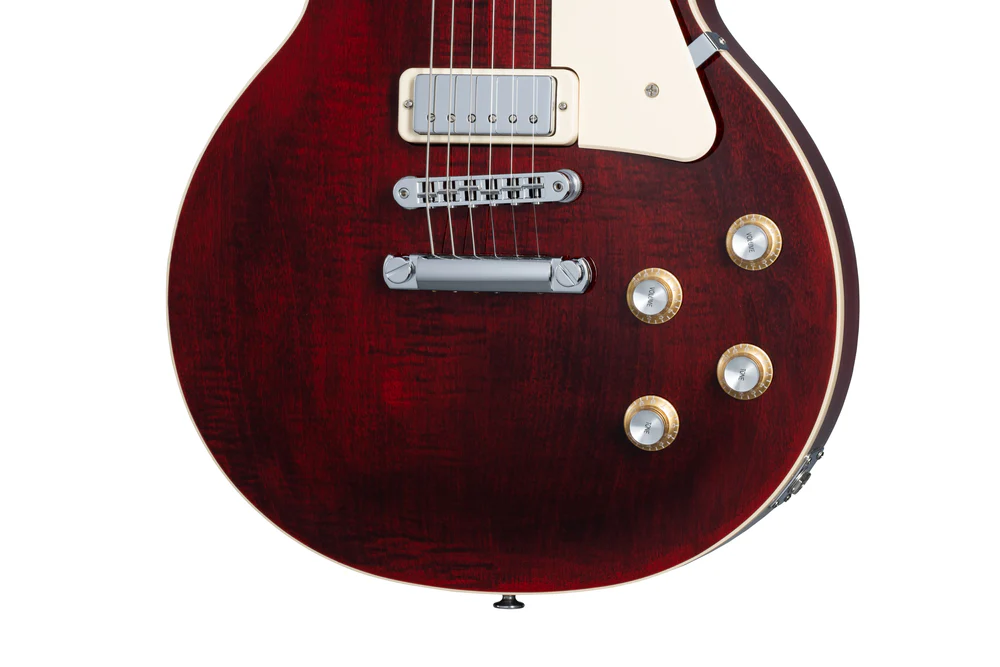

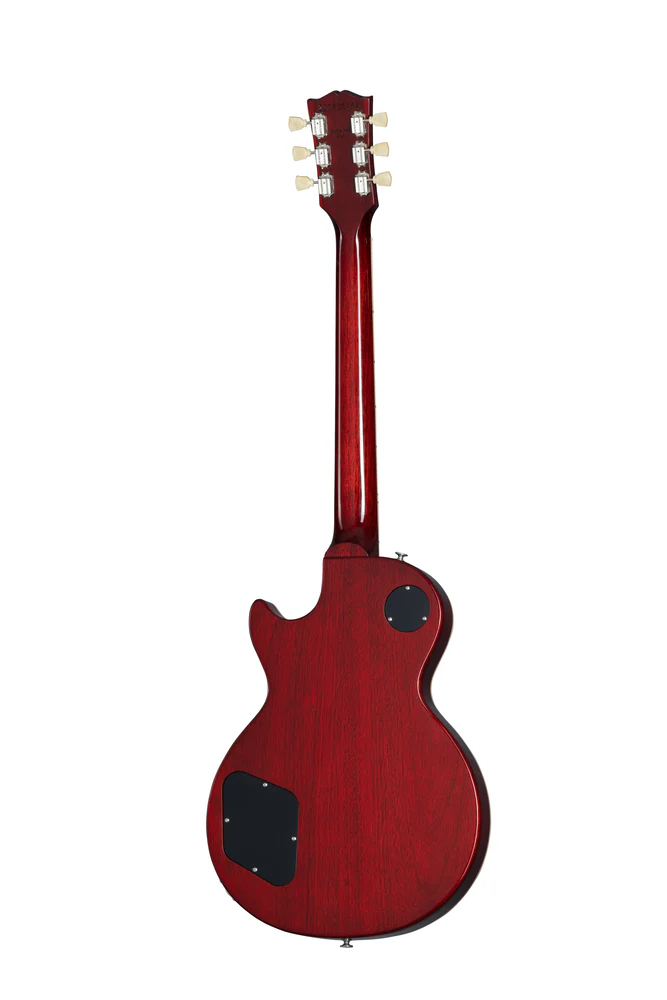

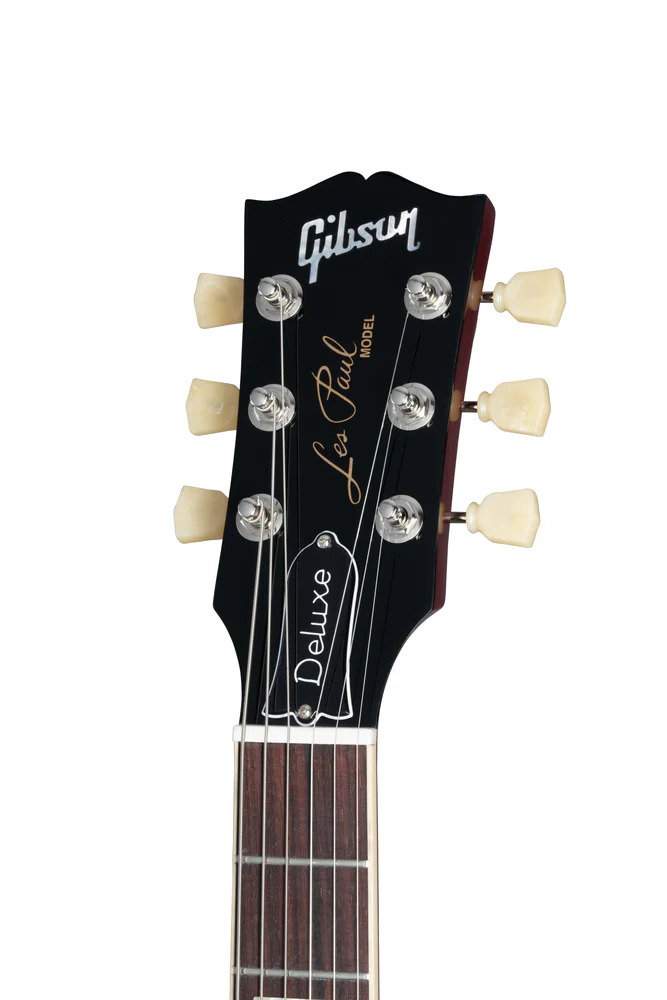

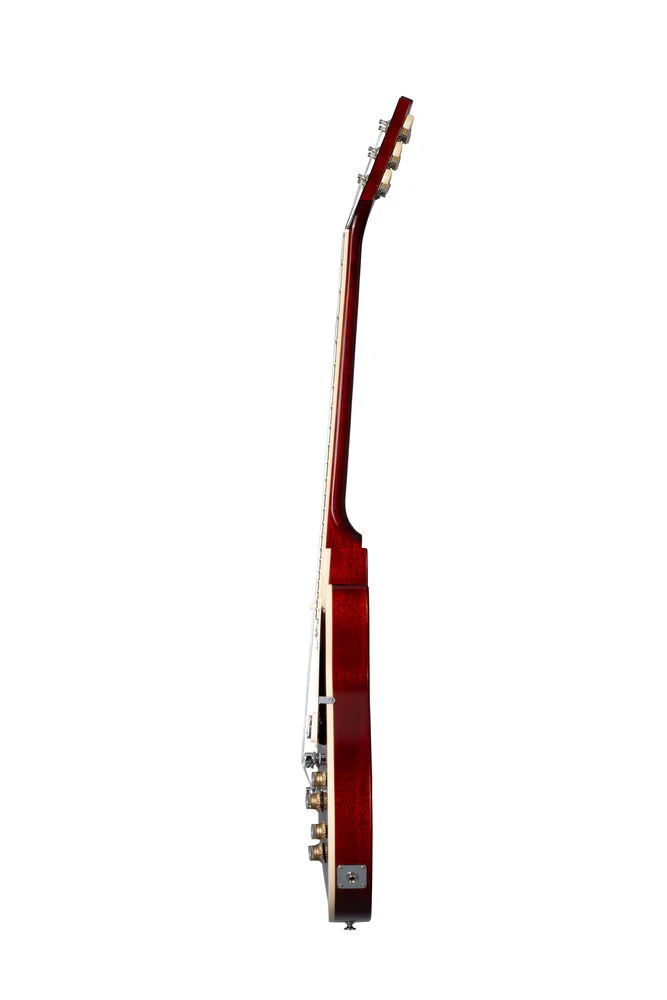

First released in 1969, the Deluxe saw the introduction of the mini humbucker™ to the Les Paul lineup. Mini humbuckers retain the hum-free performance of their full-sized cousins but with a somewhat clearer and brighter tonality. The new Deluxe has features that were inspired by those early models from the 1970s, with a non-weight relief mahogany body and bound maple top, a bound mahogany neck with a Rounded C profile, vintage-style Keystone tuners, Graph Tech® nut, and a traditional Les Paul control layout with 2 Volume and 2 Tone controls wired with Orange Drop® capacitors. Available in classic Goldtop and 70s Cherry Sunburst gloss nitrocellulose lacquer finishes.

Body

Body Shape Les Paul
Body Material Mahogany
Top Maple
Binding Cream
Weight Relief None
Finish Gloss Nitrocellulose Lacquer

Neck

Material Mahogany
Profile Rounded C
Scale Length 24.75" / 628.65mm
Fingerboard Material Indian Rosewood, Cream Binding
Fingerboard Radius 12"
Number Of Frets 22
Frets Medium Jumbo
Nut Material Graph Tech
Nut Width 1.7" / 43.053mm
Inlays Acrylic Trapezoids
Joint Glued in

Hardware

Finish Chrome
Tuner Plating Chrome
Bridge Tune-O-Matic
Tailpiece Aluminum Stop Bar

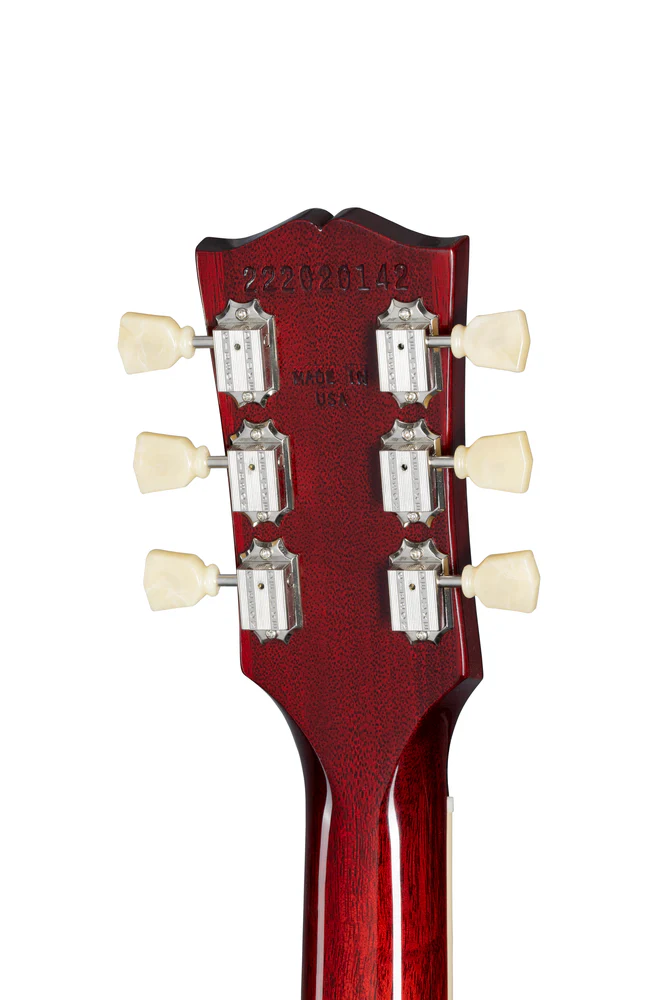

Tuning Machines Vintage Keystone
Pickguard Cream
TrussRod Adjustable
Truss Rod Cover 2-ply Bell "Deluxe" hot stamp
Control Knobs Gold Top Hats with Silver Inserts
Switch Tip Cream
Switchwasher Cream
Jack Plate Cover Chrome
Control Covers Black
Strap Buttons 2 - bottom and shoulder
Mounting Rings Cream
Pickup Covers Chrome

Electronics

Neck Pickup Mini Humbucker
Bridge Pickup Mini Humbucker
Controls 2 Volume, 2 Tone (Hand-wired with Orange Drop Capacitors)
Pickup Selector 3-way Toggle Switch
Output Jack 1/4"
Miscellaneous

Strings Gauge .010, .013, .017, .026, .036, .046
Case Hardshell Case (940-18163)
