Whether in the studio or on stage, the precise sound and linear frequency response of the M 201 result in a signal that consistently stands out in the mix and leaves all post-processing options open. It’s regarded as a dynamic reference when it comes to natural sound reproduction.

The M 201‘s slim design also makes it easy to position the microphone, giving the users the best possible support in their search for the perfect sound. Due to its hypercardioid polar pattern and the hum-bucking coil, the M 201 is ideal to avoid noise and feedback.

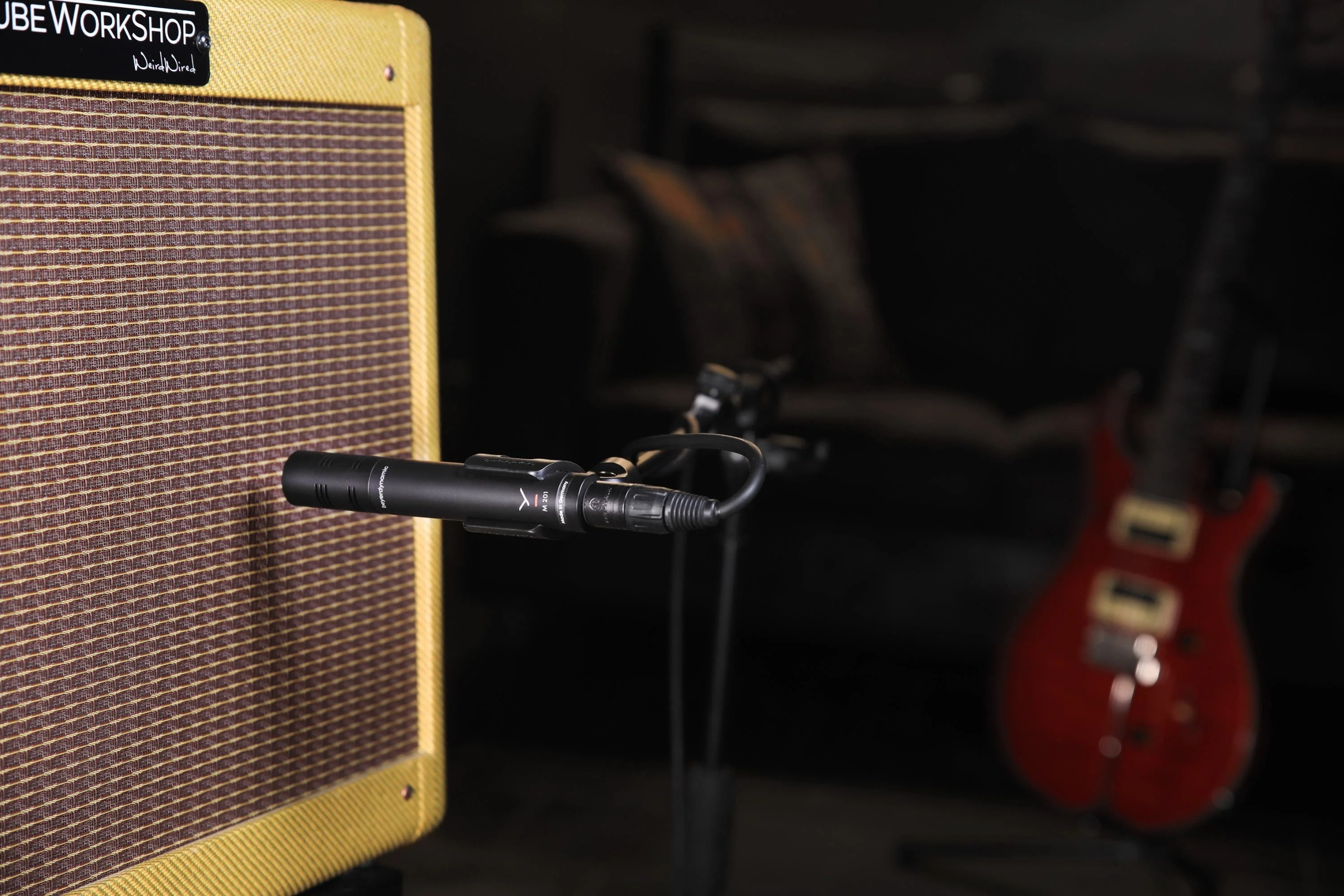

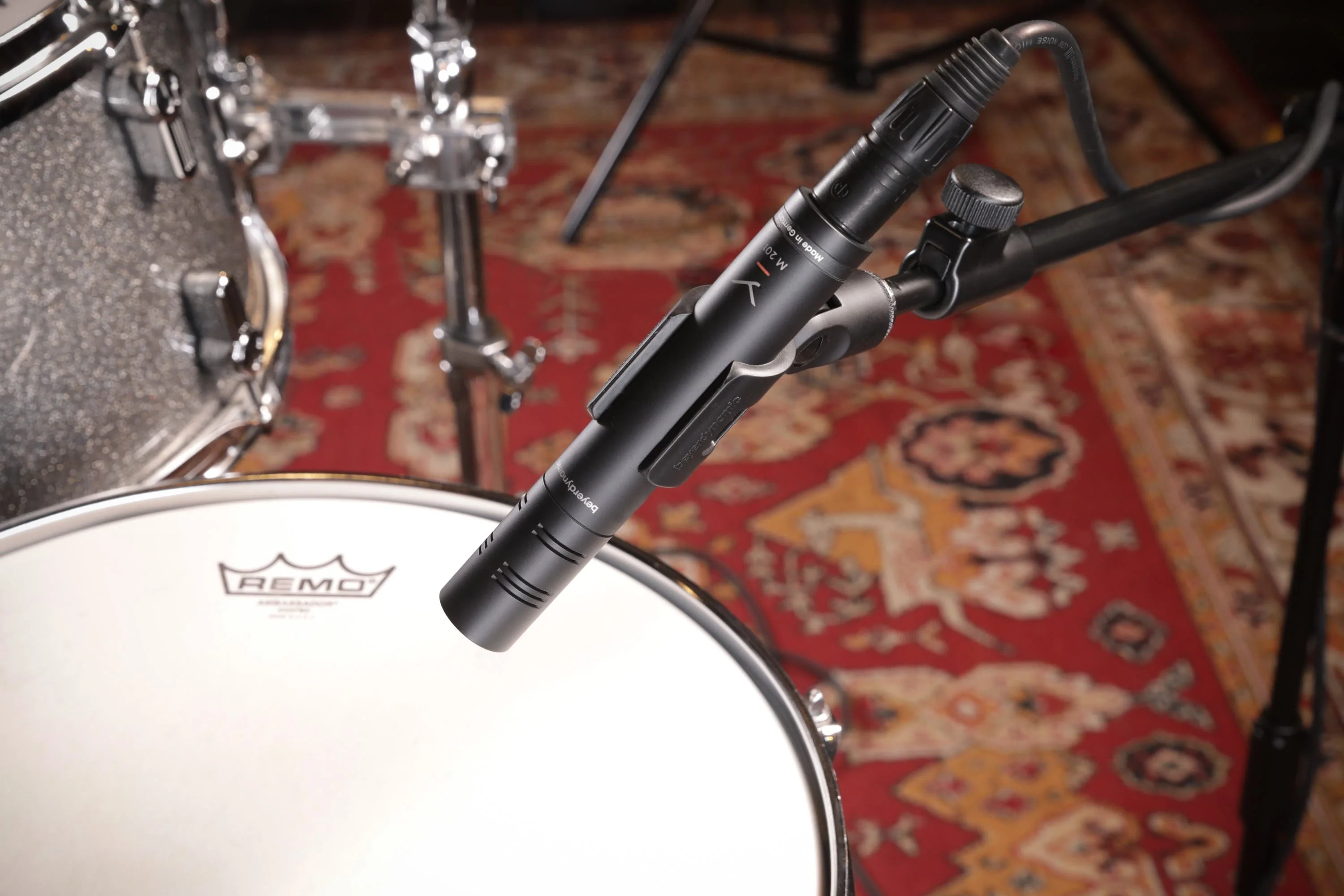

Ideally used to pick up snare drums or electric guitar amps, the M 201 is impressive with a variety of different signal sources. The high impulse fidelity for a dynamic microphone is remarkable. Thanks to the hypercardioid polar pattern, the M 201 also enables high channel separation.

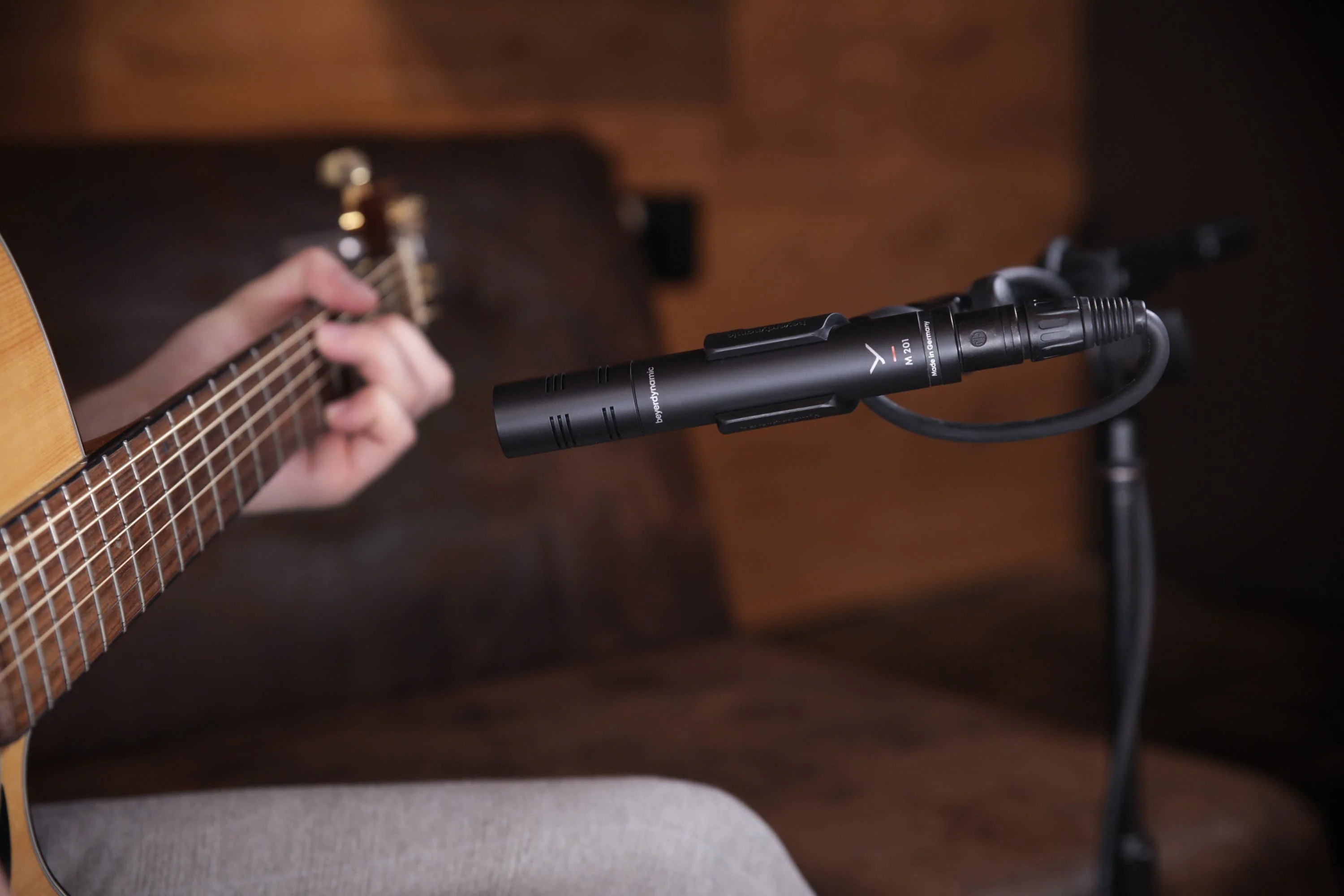

In addition to this, crosstalk is reduced as best as possible. This is another reason why this microphone is a popular companion for drums. The M 201 is appreciated for the use with acoustic guitars because of its clear and detailed sound reproduction. In addition, the M 201 can also be used for vocals or speech.

Produced at our company location in Heilbronn, Germany, since 1973.

FEATURES

Extremely flexible dynamic moving-coil microphone
Remarkably natural, detailed sound characteristics
High directivity due to hypercardioid polar pattern
Hum-bucking coil to eliminate background noise
Ideal for snare drum or electric guitar amp
A defined hypercardioid polar pattern
Outstanding clear and detailed sound
Handmade in Germany for decades
Flexible application options
High speech intelligibility
Handcrafted in Germany

SPECIFICATIONS

Transducer type: Dynamic
Operating principle: Pressure gradient
Polar pattern: Hypercardioid
Frequency response: 40 - 18,000 Hz
Rear attenuation at 1 kHz: > 20 dB at 120°
Sensitivity (0 = 1 V/Pa): 1.2 mV/Pa (= -58 dBV)
Magnetic field suppression: > 18 dB at 50 Hz
Nominal impedance: 200 Ω
Load impedance: 1000 Ω
Diaphragm: HostaphanR
Case/finish: Brass
Connector: XLR, 3-pin, male

DIMENSIONS

Length: 147 mm
Shaft diameter: 24 mm
Head diameter: 24 mm
Weight: 228 g
